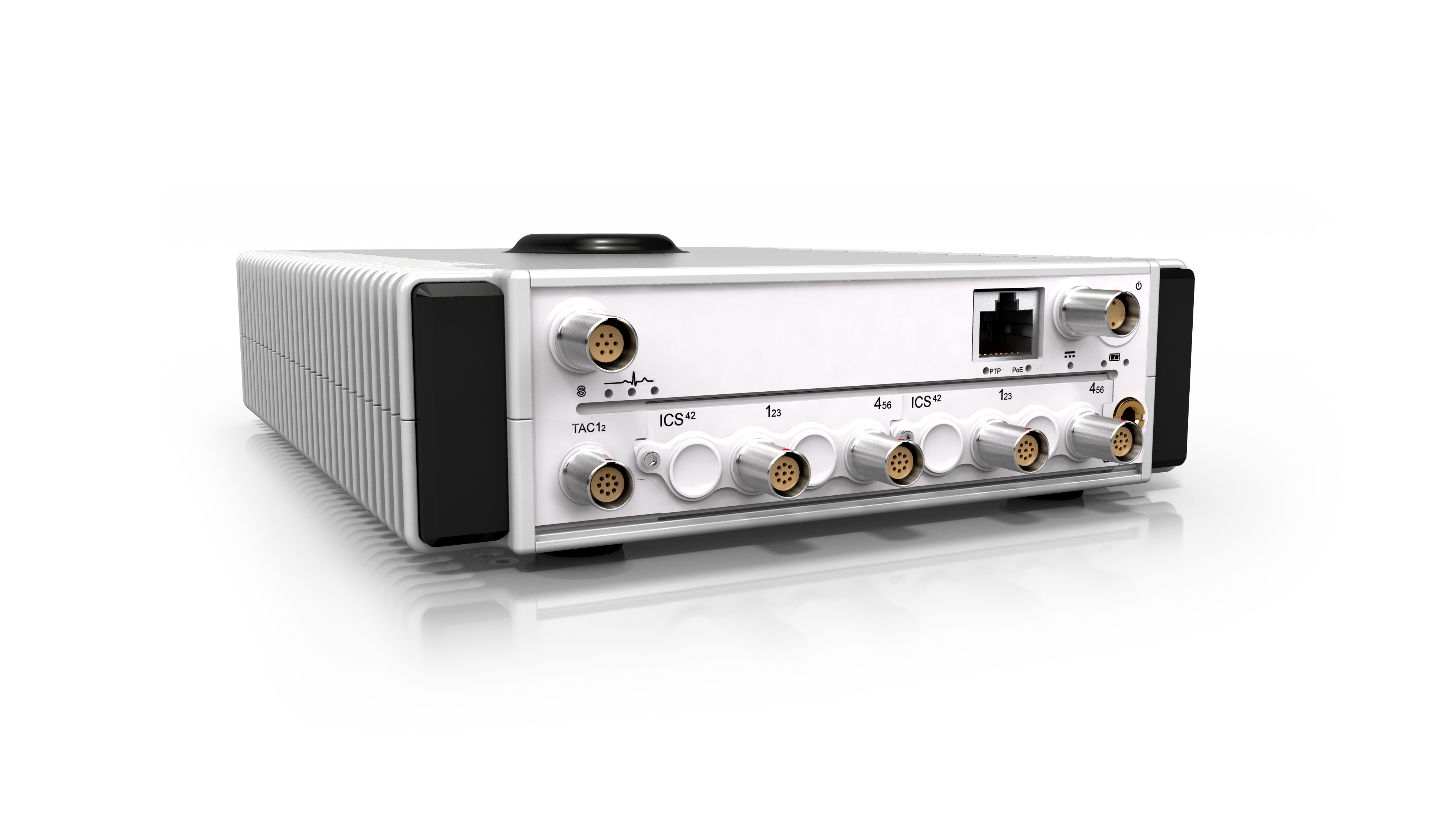

MICROQ independent
MICROQ i1B
The MICROQ i (independent) comes standard with built-in Data Memory and Battery Power. Data Memory and Battery Power allow for data collection in almost any measurement setup where a stable power source is not available.
This includes autonomous data acquisition where the system cannot be connected to a PC via Ethernet.
A variety of built-in and interchangeable I/O Modules provides the additional flexibility to support a diverse range of remote/mobile and laboratory applications.
A variety of built-in and interchangeable I/O Modules provides the additional flexibility to support a diverse range of remote/mobile and laboratory applications.
Product Full Description
The MICROQ i (independent) comes standard with built-in Data Memory and Battery Power. Data Memory and Battery Power allow for data collection in almost any measurement setup where a stable power source is not
available. This includes autonomous data acquisition where the system cannot be connected to a PC via Ethernet.
A variety of built-in and interchangeable I/O Modules provides the additional flexibility to support a diverse range of remote/mobile and laboratory applications.
The Essentials
Connected and adaptable
Accessible open data formats.
Intuitive interaction for setup and control on smart devices.
Inherent, high signal quality
24-bit
102.4 kSa/s | 204.8 kSa/s | 5 MSa/s
Calibration (including ISO/IEC 17025)
Modular signal conditioning
Two Module slots for interchangeable channels
Featured: ICS42. See ICS42 product specifications here.
S-Port for ATTOQ
The S-Port supports optional additional ATTO
Qs, increasing signal conditioning and measurement placement possibilities. Contact MECALC Technologies for more information about the ATTOQ.
Simplified cabling: One cable for Power, Ethernet and Synchronization
PoE (Power over Ethernet)
Ethernet: 1000BASE-T | Data transfer at 45 MB/s
PTP (Precision Time Protocol)
Synchronization over PTP IEEE (1588-2008) with other QuantusSeries / PTP compatible devices
DC Power
10 - 30 VDC | For automotive power or a standard power adapter.
Rugged
Machined from aluminium
Conduction cooled
Closed chassis with no internal airflow
Shock and vibration tested
Built-in Independence
Built-in 128 GB SSD
Built-in Internal MICROQ Battery
Li-Ion battery to optimize power usage and extend operation time.
Supports optional External MICROQ Batteries
Hot-swap for increased uninterrupted measurement time.
Supports the DOCKQ maintenance station for sharing data and charging the MICROQ and External MICRO
Q Batteries.
Information on technical characteristics is based on the latest information available at the time of publication.
