ICS Module
ICS42

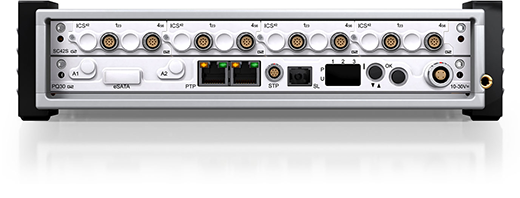

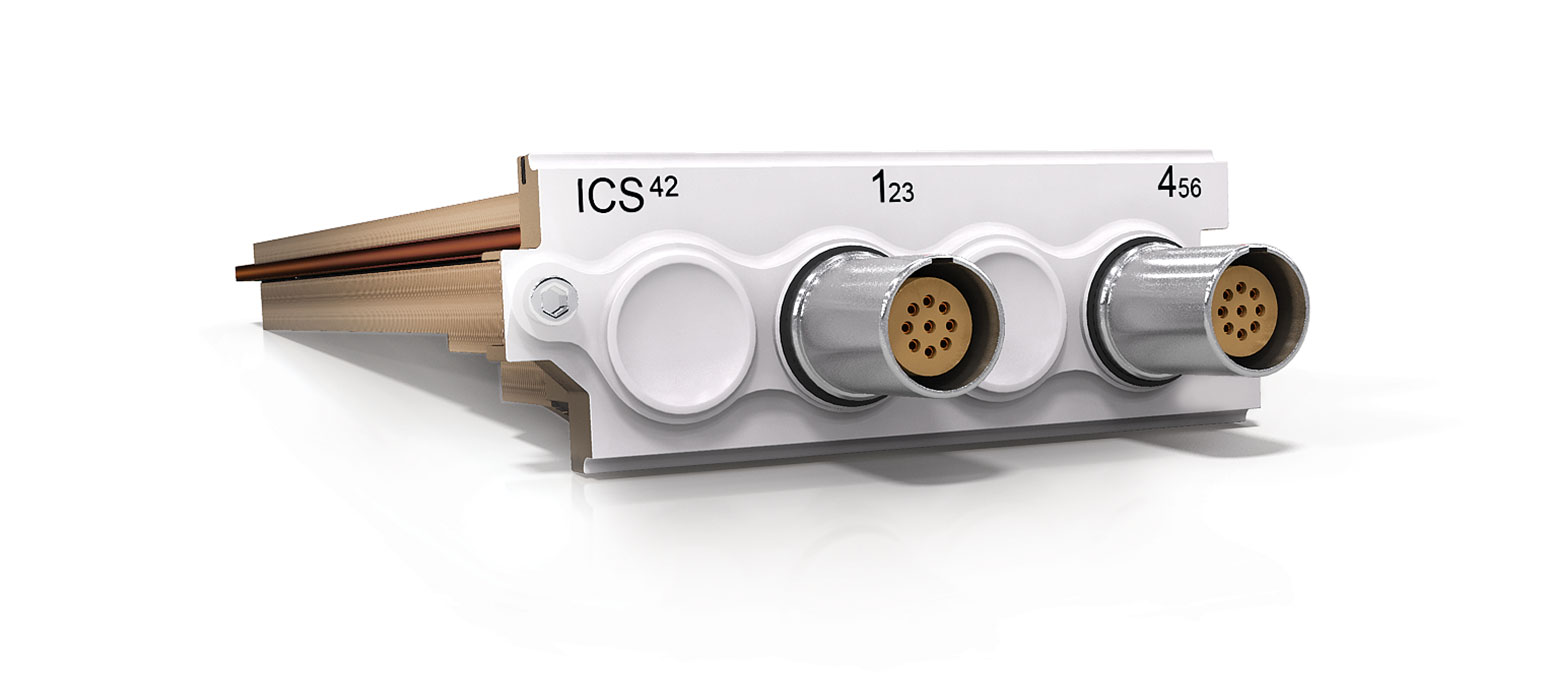

The ICS42 Module can be used with ICP® based accelerometers, force and pressure sensors, as well as to measure analog voltages.
All 6 channels can operate independently of each other, each with their own setting of mode, gain and coupling.
All 6 channels can operate independently of each other, each with their own setting of mode, gain and coupling.
Product Full Description
The ICS42 Module can be used with ICP® based accelerometers, force, and pressure sensors, as well as to measure analog voltages.
All 6 channels can operate independently of each other, each with its own setting for mode, gain, and coupling.
ICS42: 6 Channel ICP® and Voltage Input Amplifier
Where used:
With any ICP® based sensor commonly used to measure vibration, acceleration, force or pressure.
With any voltage source up to ±10 V in voltage input mode
Features
6 channels
2 input modes of operation:
- ICP ® mode with 4 mA constant current at ±12 V or 24 V excitation
- Voltage input mode with AC or DC coupling
- ICP ® mode with 4 mA constant current at ±12 V or 24 V excitation
- Voltage input mode with AC or DC coupling
Supports TEDS IEEE 1451.4 V0.9, V1.0 (Class 1)
24-bit resolution, 102.4 kSa/s sampling rate per channel, 49 kHz bandwidth.
< 0.2° @ 10 kHz phase accuracy when in similar range.
± (100 mV, 1 V, 10 V) input ranges
Highly configurable to accommodate single-ended and triaxial sensors.
Supports a number of known industry triaxial cables.
Short and open circuit cable monitoring.
Signal integrity circuit continuously monitors the input and disconnects sensitive circuits during overload conditions.
Pre- and post-filter over flow monitoring
Selectable low and high pass digital filters
2 MΩ differential and 1 MΩ single-ended input resistance
LEMO® 9-way EHG.0B connectors
Low power consumption
Related SubModules
TBNC10 (See TBNC10 for more information)
Information on technical characteristics is based on the latest information available at the time of publication.
