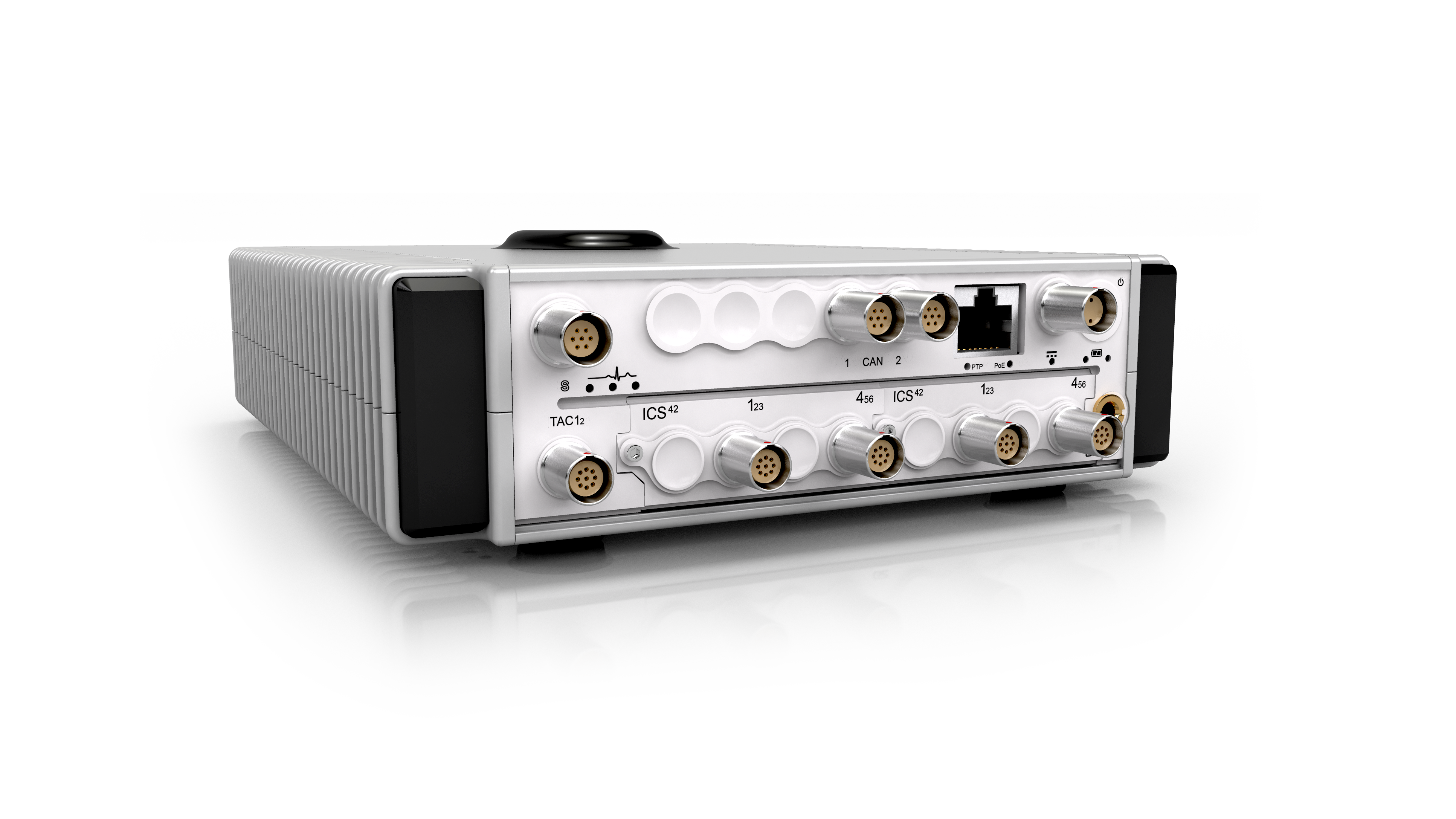

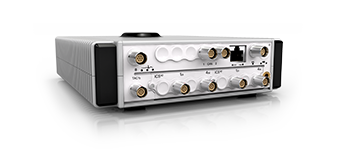

MICROQ independent Plus+
MICROQ i+W1BCGT

The MICROQ i Plus+ adds onto the essential independent features with Wi-Fi, GPS, Tacho and CAN / CAN FD.

This provides support for a wide range of applications, including field measurements that require a system to be untethered from a PC or stable power source.
Description Specifications

Product Full Description

The MICROQ i Plus+ adds onto the essential independent features with Wi-Fi, GPS, Tacho and CAN / CAN FD.

This provides support for a wide range of applications, including field measurements that require a system to be untethered from a PC or stable power source.

The Essentials

Connected and adaptable

Accessible open data formats.
Intuitive interaction for setup and control on smart devices.

Inherent, high signal quality

24-bit
102.4 kSa/s | 204.8 kSa/s | 5 MSa/s
Calibration (including ISO/IEC 17025)

Modular signal conditioning

Two Module slots for interchangeable channels
Featured: ICS42. See ICS42 product specifications here.
S-Port for ATTOQ
The S-Port supports optional additional ATTO Qs, increasing signal conditioning and measurement placement possibilities. Contact MECALC Technologies for more information about the ATTOQ.

Simplified cabling: One cable for Power, Ethernet and Synchronization

PoE (Power over Ethernet)
Ethernet: 1000BASE-T | Data transfer at 45 MB/s
PTP (Precision Time Protocol)
Synchronization over PTP IEEE (1588-2008) with other QuantusSeries / PTP compatible devices
DC Power
10 - 30 VDC | For automotive power or a standard power adapter.

Rugged

Machined from aluminium
Conduction cooled
Closed chassis with no internal airflow
Shock and vibration tested

Built-in Independence

Wi-Fi

Internal GPS Receiver

Time synchronization and position.

Built-in 128 GB SSD

Built-in Internal MICROQ Battery

Li-Ion battery to optimize power usage and extend operation time.

Supports optional External MICROQ Batteries

Hot-swap for increased uninterrupted measurement time.
Supports the DOCKQ maintenance station for sharing data and charging the MICROQ and External MICRO Q Batteries.

Built-in Channels

2 Tacho Channels

20 ns | 1 MPulse/s

2 CAN / CAN FD Channels

Information on technical characteristics is based on the latest information available at the time of publication.
