Multi-function Measuring System
RIONOTE

Compact design, easy and intuitive operation. Wireless connections. Use anytime, anywhere.

RIONOTE combines the latest technology with RION's traditional virtues: quality, ease of use and economical sense.

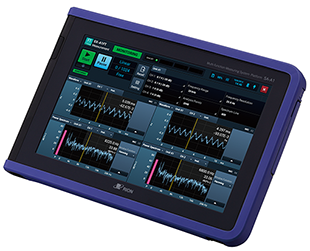

RIONOTE consists of a Main Control Unit SA-A1 which can be configured for up to 16 channels, allowing the user to perform wireless measurements anywhere. The Main Control Unit is easy to operate, with the dedicated program of your choice. All on a large touch screen.
Description Specifications

Product Full Description

Compact design, easy and intuitive operation. Wireless connections. Use anytime, anywhere.

RIONOTE combines the latest technology with RION's traditional virtues: quality, ease of use and economical sense. RIONOTE consists of a Main Control Unit SA-A1 which can be configured for up to 16 channels, allowing the user to perform wireless measurements anywhere. The Main Control Unit is easy to operate, with the dedicated program of your choice. All on a large touch screen.

Analysis result display examples include:

  • FFT analysis
  • Transfer function
  • Waveform recording
  • Octave band analysis

Input section

Number of channels

4 (2), BNC connectors

Maximum input voltage

±13 V

CCLD

2 mA | 24 V (4 mA Factory Option)

Amplifier section

Frequency range

DC to 20 kHz or 0.25 Hz to 20 kHz

Input range

-40 dB to 20 dB, 20-dB steps, 0 dB ref. Vrms = 1 V

Residual noise

At range full-scale: -85 dB or less (0 dB range, AP level)

Dynamic range

100 dB or better (0 dB range, fs = 51.2 kHz, 400 line FFT noise level)

Phase difference between channels

±1 deg. or less (1 Hz to 20 kHz, same input range)

A/D converter section

A/D converter

24-bit, delte-sigma type, simultaneous sampling

Sampling frequencies

  • 51.2 kHz
  • 25.6 kHz
  • 12.8 kHz
  • 5.12 kHz
  • 1.28 kHz
  • 512 Hz
  • 256 Hz

Tacho pulse input

Common

Number of channels: 1, BNC connector
Input voltage range: 0 to 12 V

Tacho

Measurement rotation speed range: 5000 pulse/s

General purpose

A/D converter: 10-bit successive approximation type
Sampling frequency: Approx. 10 Hz

Full Data Sheet

For access to the full data sheet, go to Rion - RIONOTE
Information on technical characteristics is based on the latest information available at the time of publication.
