OmniSpeaker
Mod 103_AC_DC

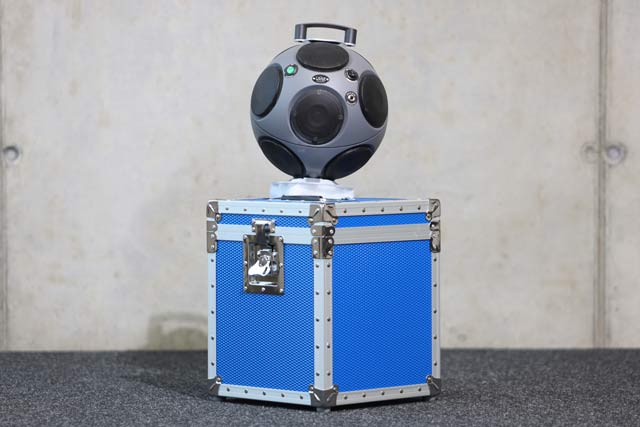

Omni directional sound source with integrated electronics and power supply.
Description Specifications

Product Full Description

Omni directional sound source with integrated electronics and power supply.

Standards

Compliance with the following international standards:

ISO 16283 | ISO 140 | ISO 3382 | ISO 354

ASTM E2235 | ASTM E336 | ASTM E90

DIN 52210
Measurement in work of sound insulation between environments D.P.C.M 05-12-1997
Measurement of the reverberation time by noise stopped ISO 354
Measurement of the impulse response ISO 3382

Spherical source features

12 speakers (80 mm neodymium magnets)
Digital amplifier 150 W rms (300 W peak) | Very low heat dissipation
Generator with 2 Pink Noise, 2 White Noise, 2 Sine SweepSweep
Remote control receiver
External input
Power continues: 118 dB (PWL Pink Noise, 1/3 octave)
Power supply for 103_AC: AC 230 V
Power supply for 103_AC_DC: AC 230 V and Battery Pack
Diameter: 25 cm
Total weight: 5 kg (all electronics included)

What's in the box

Carrying case by dodeca
Cable connectors
Pedestal for resting
Declaration of conformity (ISO)
Instructions manual
Declaration of conformity EMC, CE
Remote control receiver | 16 keys for total control | Frequency 868 MHz

Optional accessories

Tripod | Extendible stand, H 180-210 cm | Aluminium | Weight: 2.7 kg
Information on technical characteristics is based on the latest information available at the time of publication.
